Advantages:
Looking for a CAD Drawing? Download Here

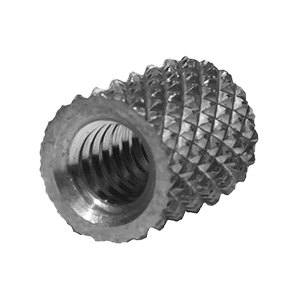

Yardley Standardized Molded-In Inserts are designed for molding in plastics, rubber and ceramics. These threaded inserts feature patented designs for molded-in use. Close tolerance of minor thread diameter and careful burnishing of inner thread crests assure snug fit on pins. Extremely flat ends on inserts (with no burrs, ridges or other defects) mean no leakage of material on the face of the mold.
| Thread Type | |
|---|---|
| Material | |
| U.S. Thread Size (A) | |
| Outside Diameter (B) | |
| Outside Diameter Reference (B) | |
| Length (C) | |
| Length Tolerance (C) | |
| U.S. I.D. (+.002 -.000 after tapping) (D) | |
| Base Materials | |
| Installation Methods |
WARNING: This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
