Advantages:
Looking for a CAD Drawing? Request CAD Drawing
The Yardley BI-SERT Insert is designed to provide permanent metal threads in molded plastic parts. Specifically designed for the Rotational Molding process, this versatile insert provides exceptional torque and pull-out resistance. Unique Hex design allows the BI-SERT to be used with fibrous materials where the fibers would normally block the flow of the plastic material around ordinary diamond knurled inserts. Inside diameter held to strict tolerances for a smooth, tight fit on locating pins.

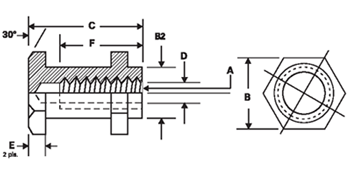

| Thread Type | |
|---|---|
| Material | |
| Metric Thread Size (A) | |
| Outside Diameter (B) | |
| Length Tolerance (C) | |
| Length (C) | |
| Minor Diameter (+/- .005) (B2) | |
| Metric (+.0015 -.000) (D) | |
| (+/- .003) (E) | |
| Metric Minimum Number of Full Threads (F) | |
| Base Materials | |
| Installation Methods |
WARNING: This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
